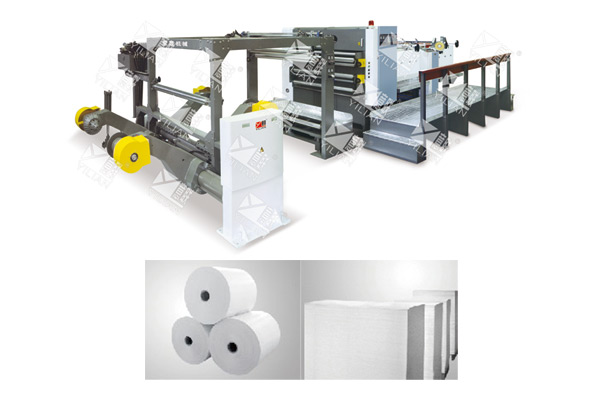

GDJA-1400/1700 hob type double station servo-driven computer paper cutter
GDJA-1400/1700 hob type double station servo-driven computer paper cutter
Application
GDJA type drum tangent machine adopts the advanced technique of Taiwan and the United Kingdom, AC servo motor drive, stable cutting speed; import bearings, precision and cutting knife, cut off the high accuracy; green touch computer interface control, simple operation, simple structure of the anti curved frame, ensure that the paper flat is currently to make paper and printing industry in general the paper products processing machinery.
E-Mail Us Download
Product Description

GDJA-1400/1700 hob type double station servo-driven computer paper cutter/paper cutting machine



The main technical parameters

Model GDJA-1400/1700
Model of cutting paper The up knife cuts reciprocally, and the down knife is fixed
Reference weight of cutting paper 50-500g
Cutting accuracy

The cutting length is below 1300mm±0.5mm

Cutting speed 300cuts/min
Gross weight 13000kgs/15000kgs
Power consumption AC380V/220V×50Hz
Cutting meter speed 300m/min
Cutting length range 450-1450mm
Paper-piling height 1300mm
Scroll diameter 1800mm(71")Max
Paper-cutting width 1400/1700mm
The format of slitting 2sheet
The request for an air compressor Max.5.5kg/cm2×5m3/min
