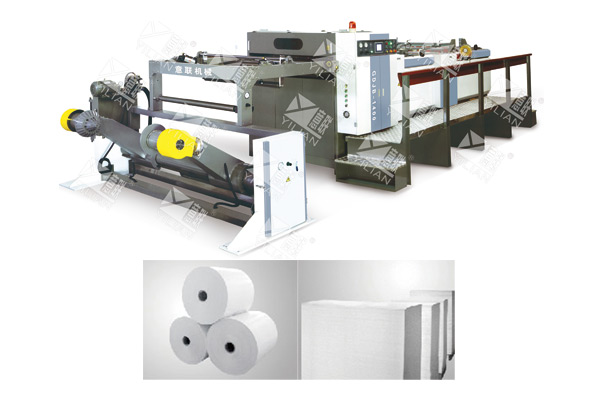

GDJB-1400/1700 hob type servo-driven computer paper cutter
GDJB-1400/1700 hob type servo driven computer paper cutting machine is the company with domestic and foreign advanced technology and improve the innovation and development of a economic type cutting machine, the computer control AC servo motor drive, with cutting speed is quick and stable; precision bearings and cutter, cut off the high accuracy; use and long service life. Touch type computer control interface, beautiful and convenient. A reasonable design of the anti bending frame, can protect the flat paper. It is ahead of the current domestic paper products and printing industry similar processing machines, and will be for your company to improve production efficiency, increase production and efficiency!
Technical parameter:
| model | GDJB-1400 | GDJB-1700 |
| model of cutting paper | the up knife cut reciprocal and the down knife is fixed | the up knife cut reciprocal and the down knife is fixed |
| reference weight of cutting paper | 60-550g | 60-550g |
| diameter of paper | 1650mm(65")Max | 1650mm(65")Max |
| paper width | 1400mm(55")Max | 1700mm(67")Max |
| cutting lenght | 450-1300 mm | 450-1300 mm |
| cutting accuracy | 1000mm以下：±0.5mm | 1000mm以下：±0.5mm |
| 1000mm以上：±0.1% | 1000mm以上：±0.1% | |
| cutting speed | 300cuts/min | 300cuts/min |
| cutting meter speed | 300m/min | 300m/min |
