Extrusion compound machine supplier

Datetime: 7/29/2019 3:46:00 PM   Visit: 849

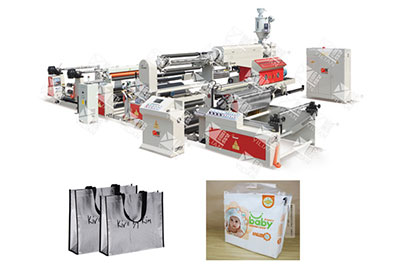

         SJFM1100-2000A Extrusion lamination machine

Extrusion compound machine supplier_Extrusion lamination machine

Brief introduction:

Sjfm series environmental protectional extrusion lamination machine, set unwinding and rewinding, drying, surface treatment,extrusion, compounding, trimming, suction side as a whole;it features with web guiding, corona treatment, line speed, meter counting; automatic tension control, temperature control and other advanced technology. Running speed 100-150m/min.

Application:

paper pe coating, woven PP sack lamination, non woven lamination and so on.
It is widely used in disposable paper cup,oil and water proof paper bag,  fast food boxes, pp woven bag, non woven vertical bag, baby diaper packing bag, cement bag, ground film, roof radiant barrier product and so on.

Features:

1.PLC man-machine interface centralized control, machine, electricity, gas, integrated design.
2 high efficient corona device
3.Easy and quick filter screen exchange
4.Double station unwinding and rewinding, automatic non stop roll exchange

Main technical parameters:

model SJFM-800 SJFM-1100 SJFM-1300 SJFM-1600 SJFM-1800
Width of die 900mm 1200mm 1400mm 1800mm 2000mm
width of finished product 400-700mm 500-1000mm 600-1250mm 800-1500mm 900-1700mm
Max. speed 100-150m/min 100-150m/min 100-150m/min 100-150m/min 100-150m/min
Coating thickness 0.01-0.1mm 0.01-0.1mm 0.01-0.1mm 0.01-0.1mm 0.01-0.1mm
L/D ratio for screw Φ80mm×30 Φ95mm×30 Φ105mm×30 Φ120mm×32 Φ140mm×32
diameter for roll unwinding and rewinding Φ1300mm Φ1300mm Φ1300mm Φ1300mm Φ1300mm
overall size 9600×8000×3200 9600×8300×3200 9600×8600×3200 9600×9000×3200 9600×9300×3200
L*W*H(MM)
power 60kw 70kw 80kw 100kw 130kw
compounding roller Φ510mm Φ510mm Φ510mm Φ510mm Φ610mm
applicable for base material  Paper/non woven /PP woven sack,etc
Extrusion resin LDPE、LLDPE、PP、EVA、EAA,etc




SJFM 1100-2000B high speed extrusion film lamination machine

Extrusion compound machine supplier_extrusion film lamination machine

Brief introduction:

Sjfm series environmental protectional extrusion lamination machine, set unwinding and rewinding, drying, surface treatment,extrusion, compounding, trimming, suction side as a whole;it features with web guiding, corona treatment, line speed, meter counting; automatic tension control, temperature control and other advanced technology. Running speed 100-150m/min.
Application: paper pe coating, paper foil lamination, woven PP sack lamination, non woven lamination and so on.
It is widely used in disposable paper cup,oil and water proof paper bag, fast food boxes, pp woven bag, non woven vertical bag, baby diaper packing bag, cement bag, ground film, roof radiant barrier product and so on.

Features:

1.Double station unwinding and rewinding system, automatic and non stop roll exchange
2.PLC One-touch centralized controls,advanced touch screen control system.the extruder can cooperate compounding body speed automatically, to reach set film thickness.
3. high efficient corona device, hydraulic for the network, are the first domestic, can effectively enhance the product peel strength.
4. Three roller compounding mechanism, back pressing roller makes compounding roller to force evenly and compounding firmly.
5. Peeling off silicone roller: compounding products peels off from cooling roller easily.
6. Compounding and filling regulating roller can overcome defects such as uneven of film thickness.
7. Disc slitting knife edge-cutter: sharp knife edge
8. High pressure blower sucks scrap edge quickly.
9. Car type extrusion machine
10.T- type die head
11.Automatic and quick hydraulic filter screen exchange ( Our Factory patent)
12.Surface rewinding roller (Double work-station ,Non-stopping)
13.Embossing function is avaliable

Technical parameters:

model SJFM-800 SJFM-1100 SJFM-1300 SJFM-1600 SJFM-1800
width of finished product 900mm 1200mm 1400mm 1800mm 2000mm
width of finished product 400-700mm 500-1000mm 600-1250mm 800-1500mm 900-1700mm
max speed 100-150m/min 100-150m/min 100-150m/min 100-150m/min 100-150m/min
Coating thickness 0.01-0.1mm 0.01-0.1mm 0.01-0.1mm 0.01-0.1mm 0.01-0.1mm
L/D ratio for screw Φ80mm×30 Φ95mm×30 Φ105mm×30 Φ120mm×32 Φ140mm×32
diameter for roll unwinding and rewinding Φ1300mm Φ1300mm Φ1300mm Φ1300mm Φ1300mm
overall size 9600×8000×3200 9600×8300×3200 9600×8600×3200 9600×9000×3200 9600×9300×3200
L*W*H(MM)
power 60kw 70kw 80kw 100kw 130kw
compounding roller Φ510mm Φ510mm Φ510mm Φ510mm Φ610mm
applicable for base material BOPP/BOPET/BOPA/CPP/CPE)/PAPER/Aluminum foil/non woven fabric
Extrusion resin LDPE、LLDPE、PP、EVA、EAA,etc




Supplier information

Wenzhou Winrich Machinery Co.,ltd is located in Pingyang county,Wenzhou city of Zhejiang Province,China, established in 1996. It covers land area of 15,800sqm.standardized workshop of 11,000 sqm,and holds 50-100 sets machines production every month,which is the largest in Wenzhou.

Company's main products are:extrusion coating and lamination machines, slitter and rewinder, paper cutter and sheeter, which are widely used in paper, cloth, metal foil, plastic bags, non woven fabric and other materials. Machines are pretty popular in Southeast Asia, Middle East, Eastern Europe, South America, Africa and other countries, it also has occupied 80% of Chinese market. Strong technical team, sophisticated production process, perfect testing means, excellent management level, timely after-service, makes it a professional and brand manufacturer of printing and packaging equipment in China.
